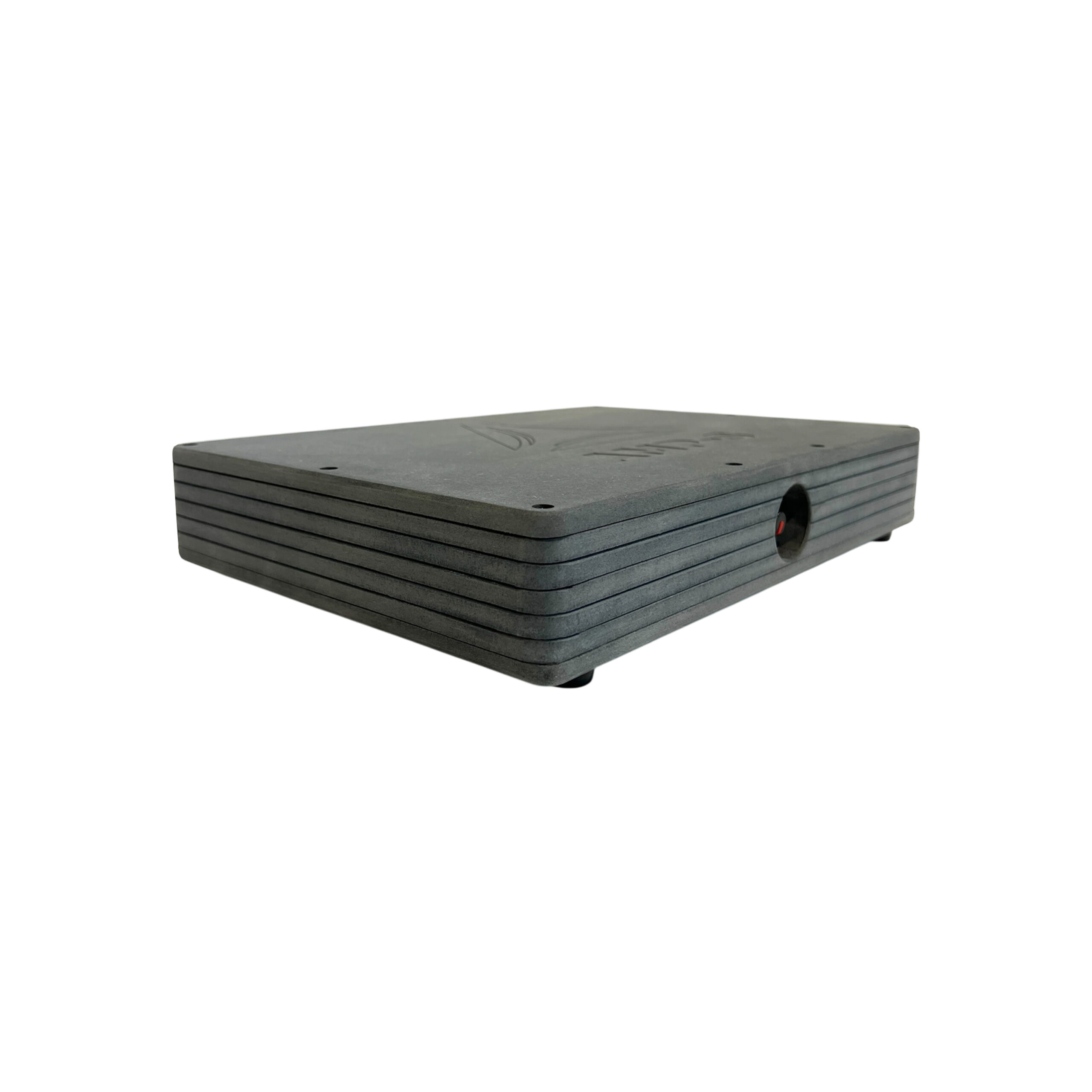

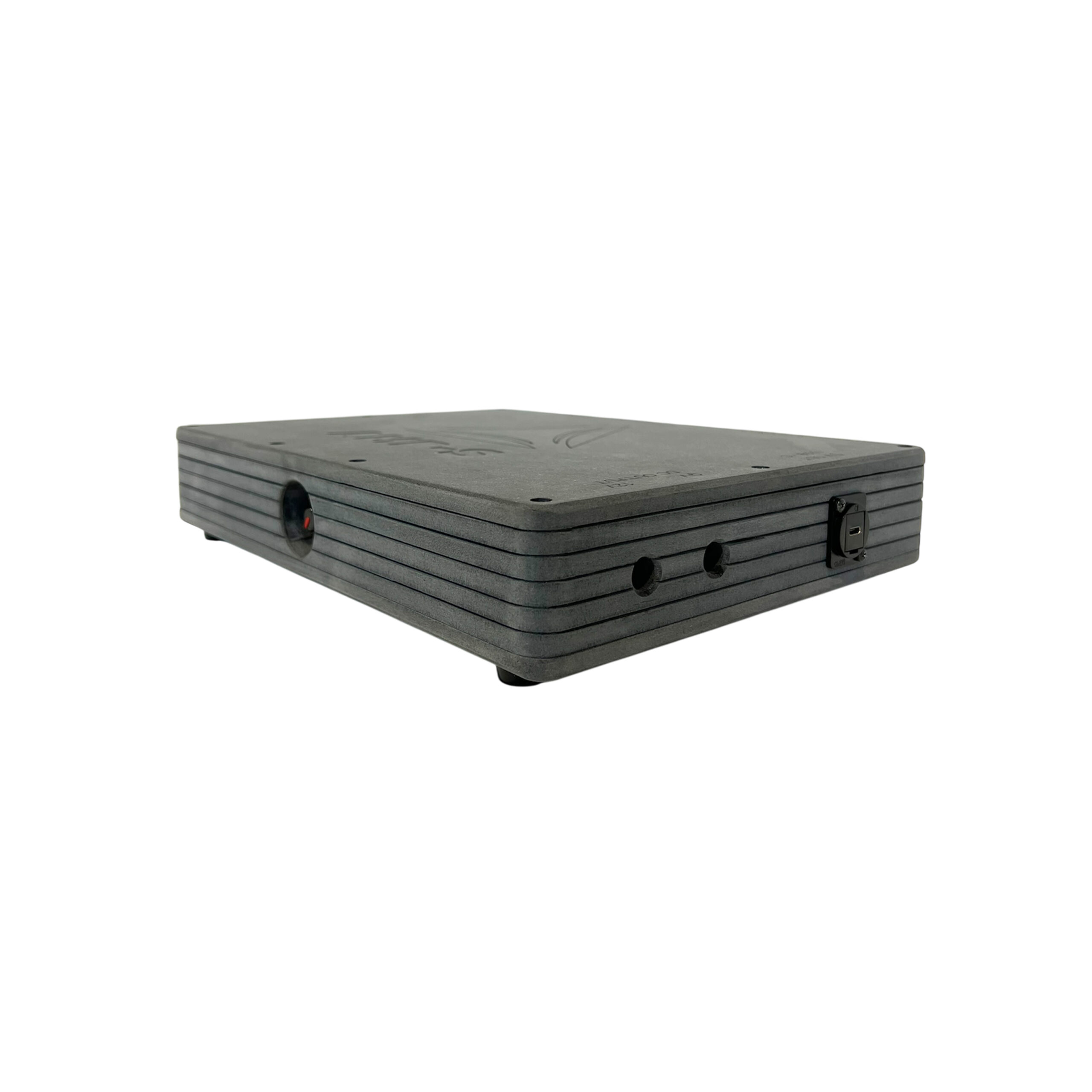

AMP S – 698Professional Portable Stereo Amplifier, recommended for users of digital systems or effect pedals.
POWER
- 2×300 Watts RMS @ 4Ω
- 2×150 Watts RMS @ 8Ω
- 2×75 Watts RMS @ 16ΩLIVE APPLICATIONSFor driving:
- 2 passive cabinets from the MF.10 – ELIS.8 series
- Guitar or bass cabinets in “wall cabinet” configuration
- Passive stage monitors
- Passive PA systems
- Direct connection after pedal-based effects unitsSTUDIO / HOME APPLICATIONSFor driving:
- High-efficiency passive stereo systems
- Passive stereo monitorsINPUT / OUTPUT
- 2× independent balanced TRS / XLR-F inputs
- 2× Combo outputs (TS Jack or Speakon)FEATURES

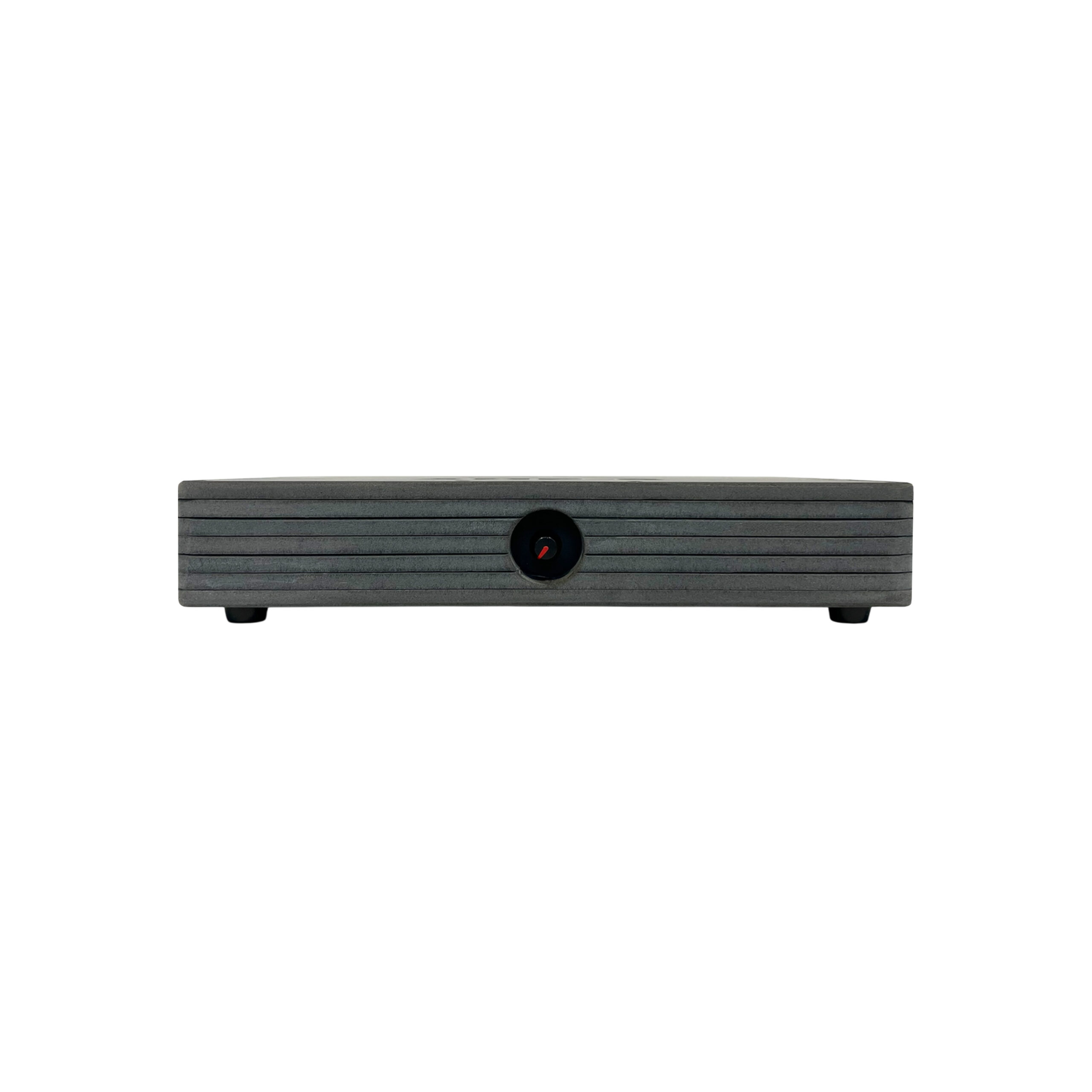

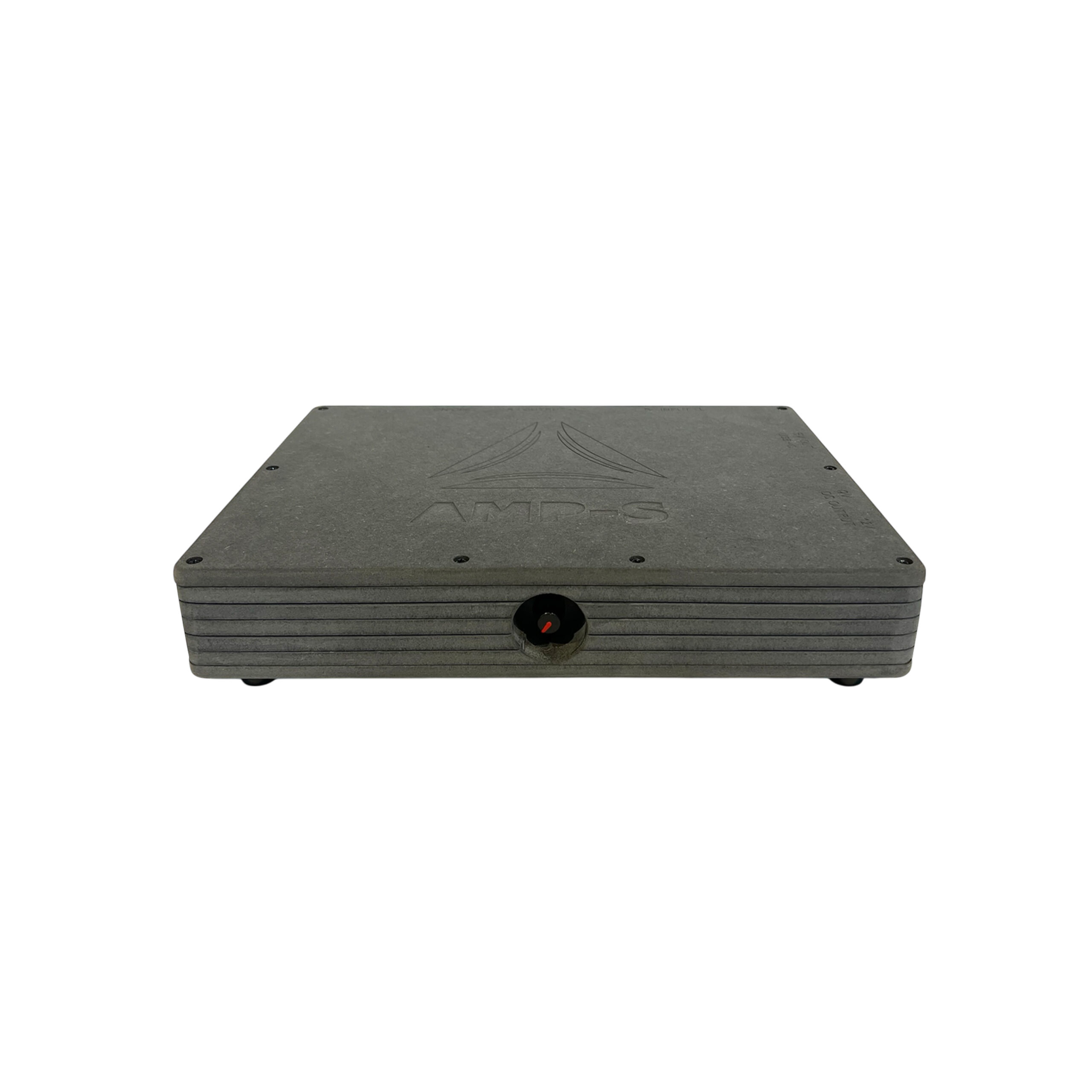

- Integrated power status LED
- Power amp clipping & preamp clipping (internal)
- Minimum output impedance: 4 Ohms
- Input voltage: 100–240 V ACDIMENSIONS & WEIGHT

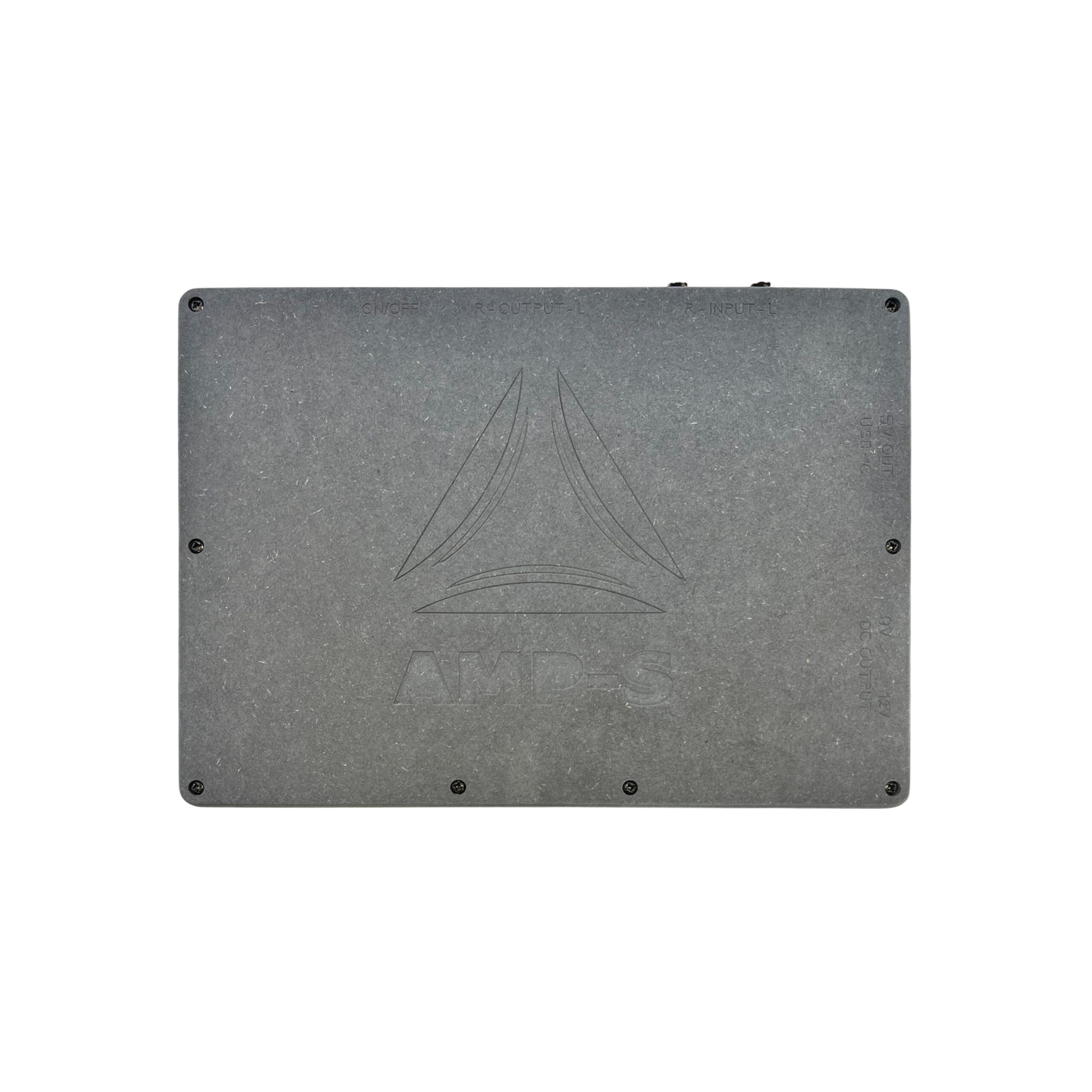

- Size (W × D × H): 300 × 250 × 63.5 mm (70 mm including feet)

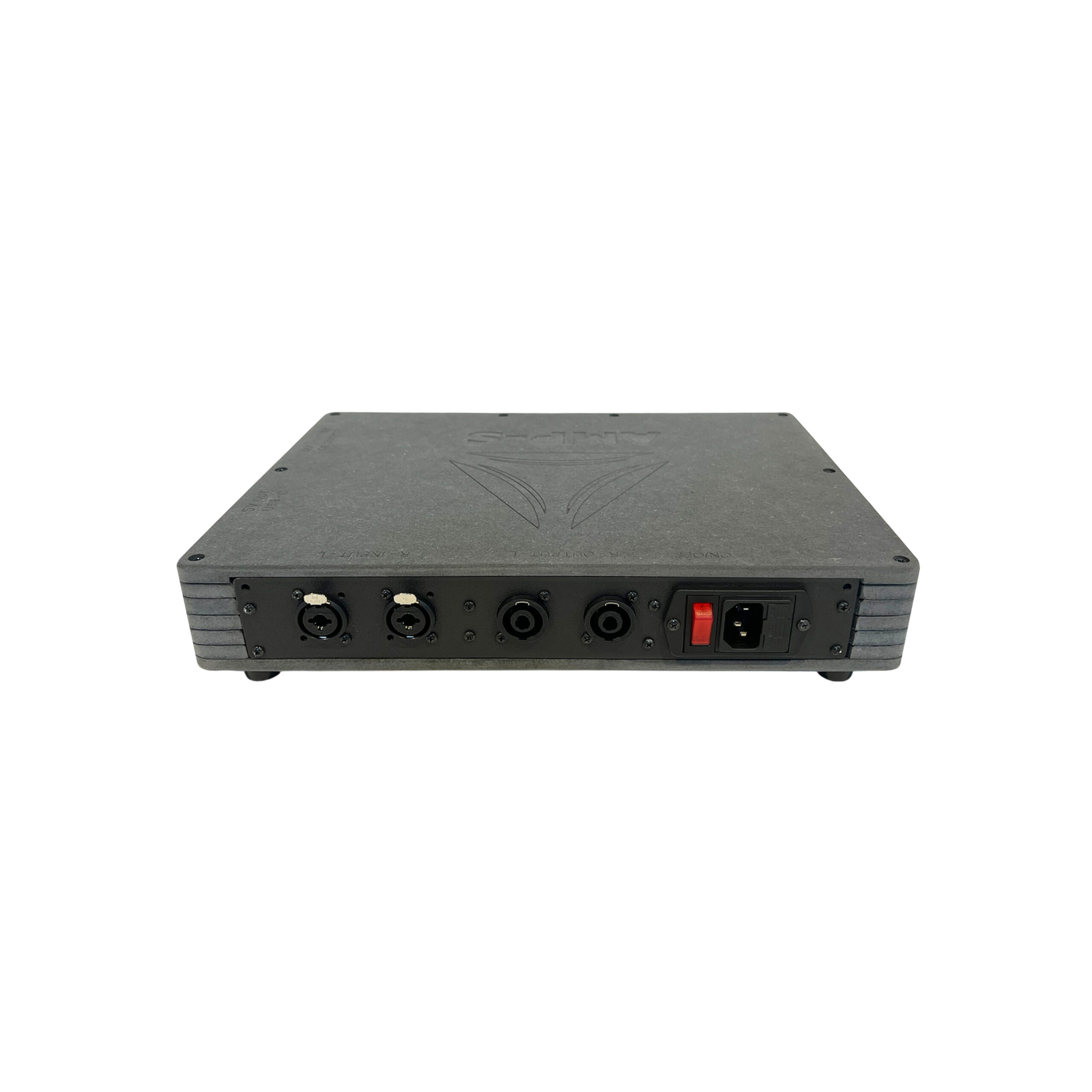

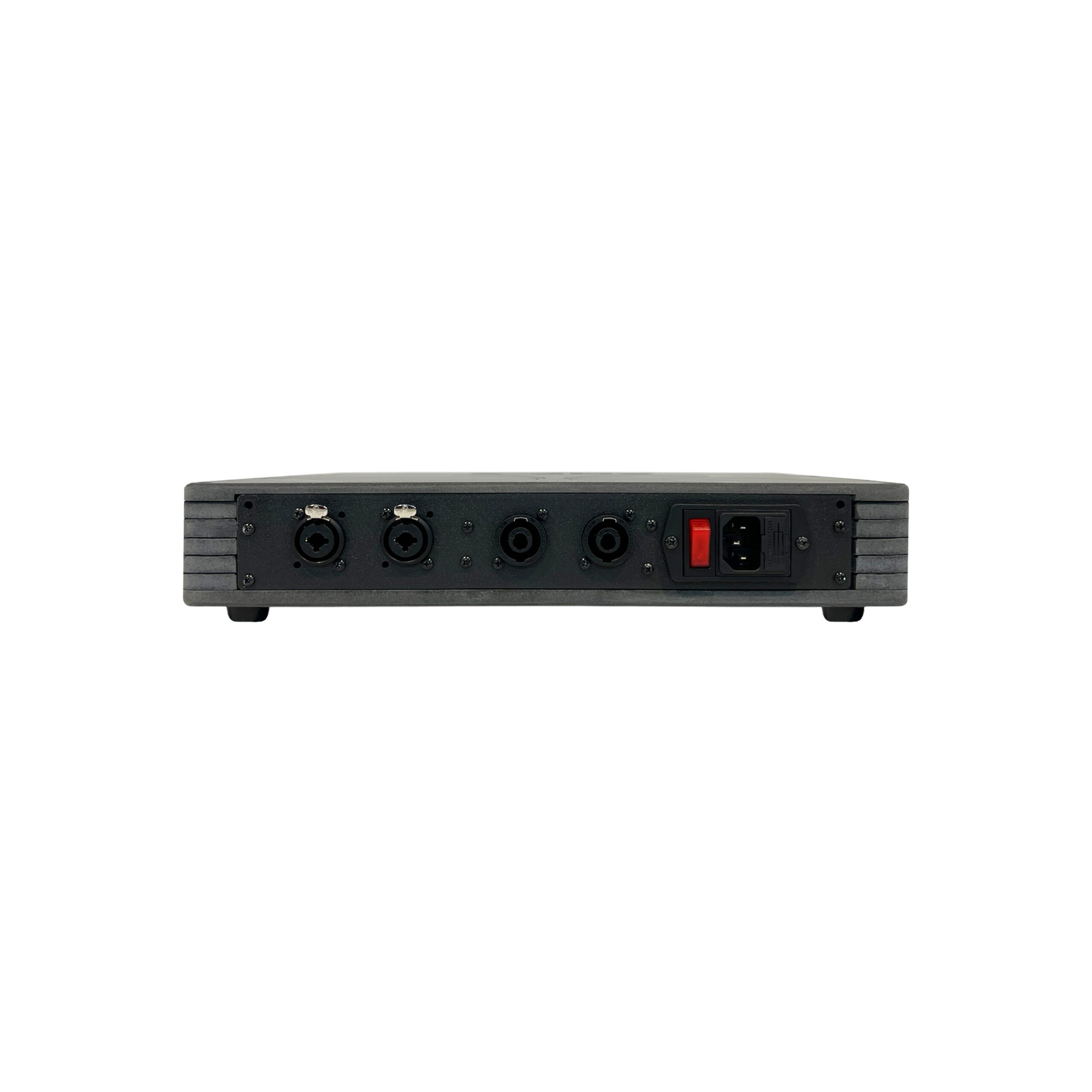

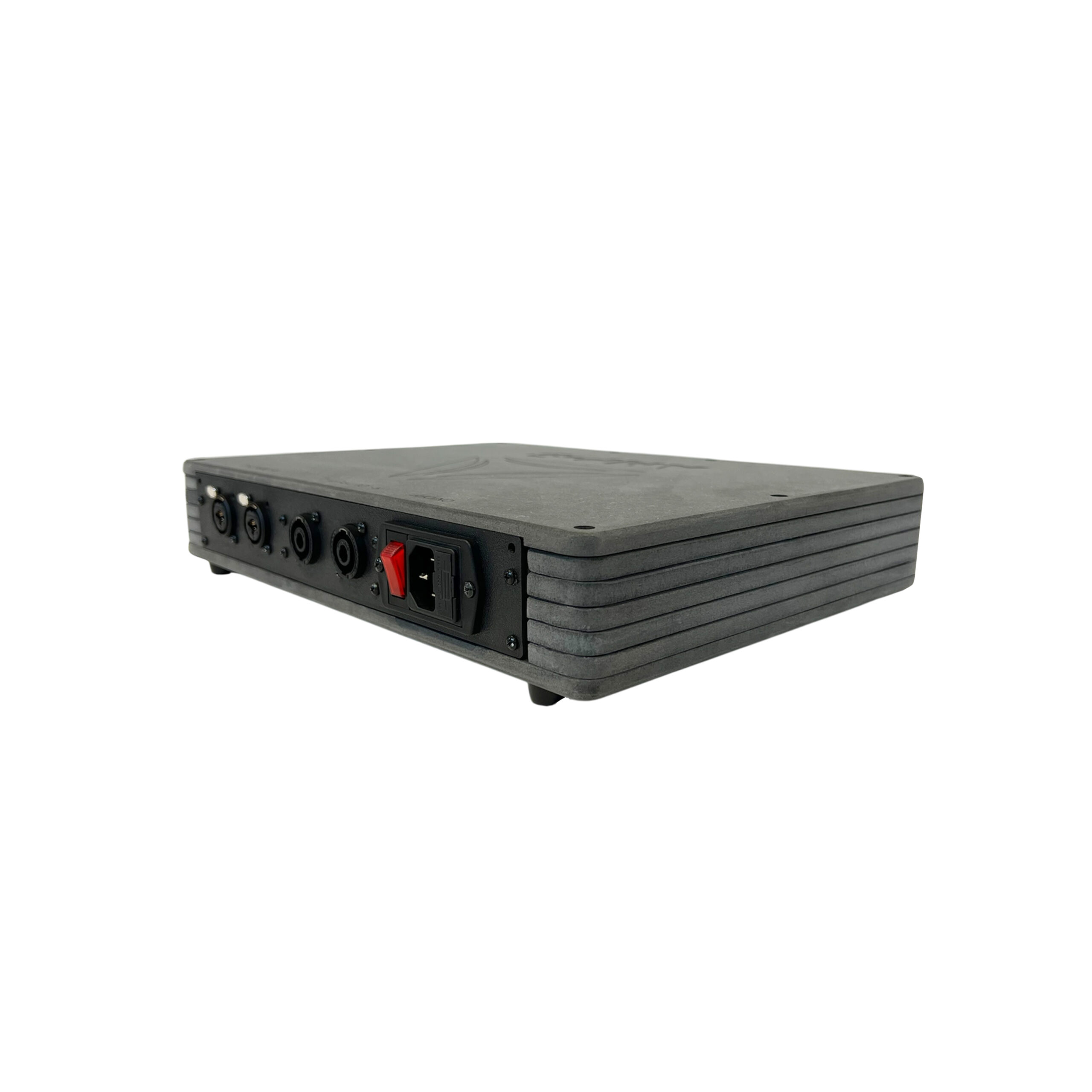

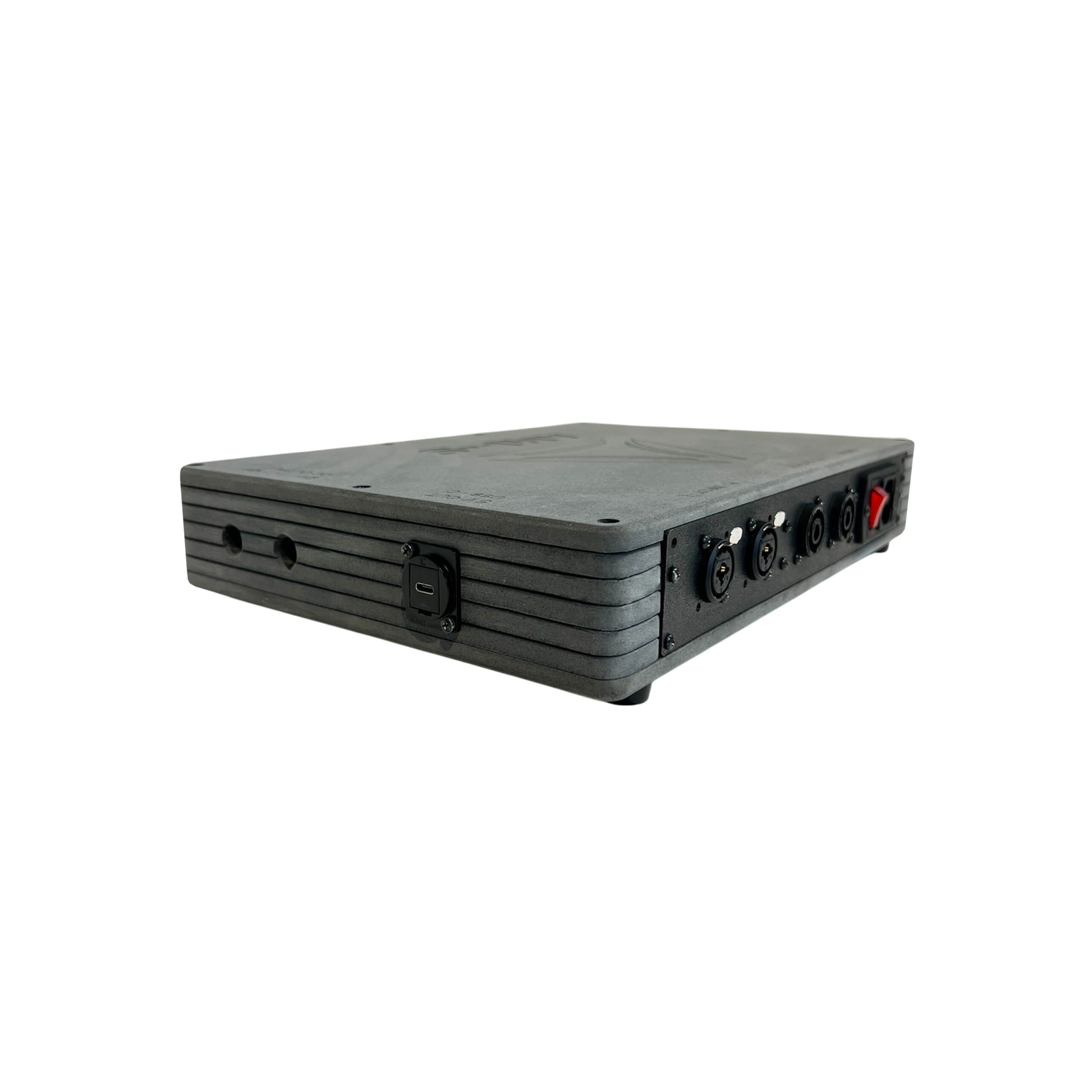

- Weight: 1.9 kgREAR SWITCHES AND CONNECTIONS
- Power switch with red LED

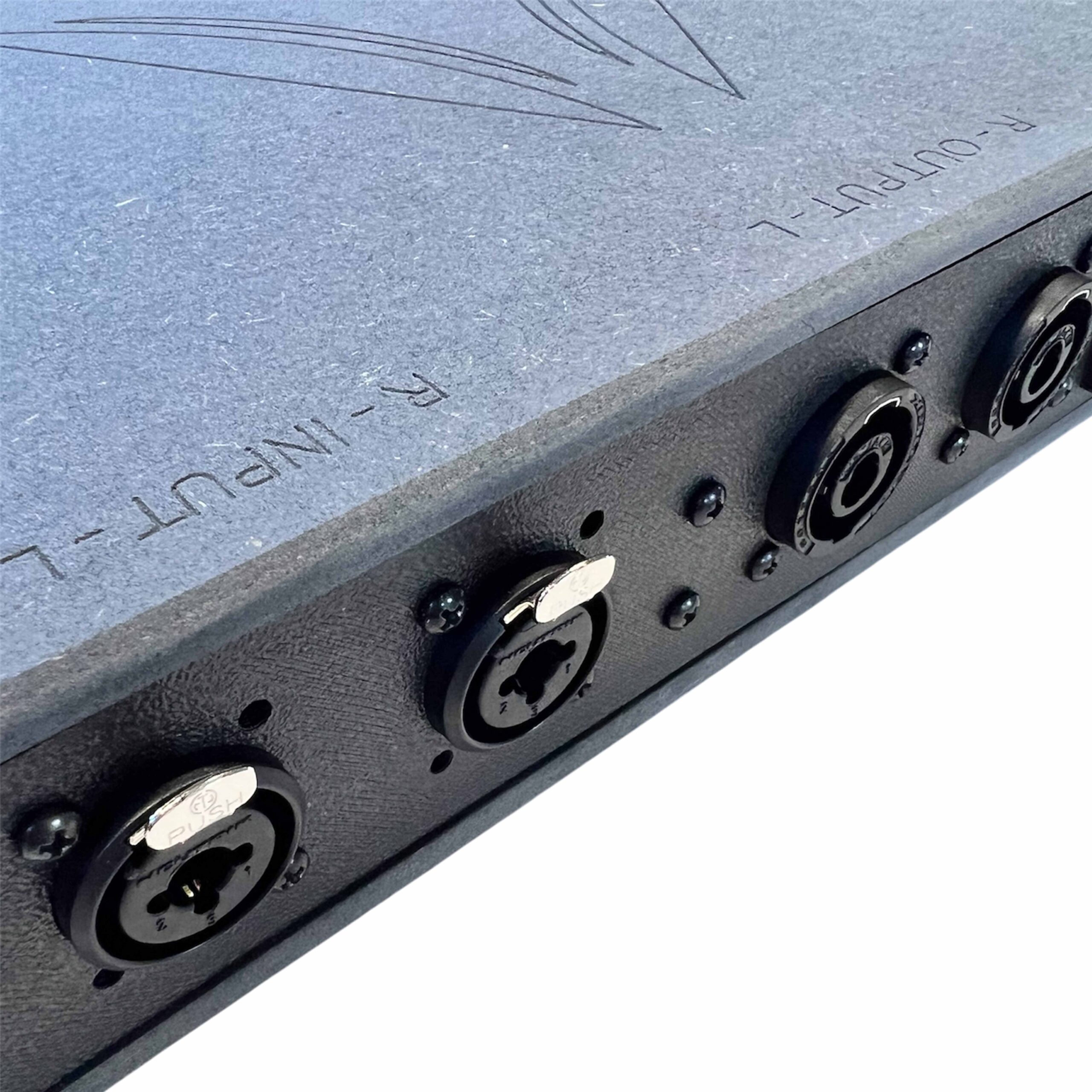

- Inputs – TRS / XLR-F combo jacks
- Outputs – 6.3 mm mono jacks
- IEC socket with switch
